3595

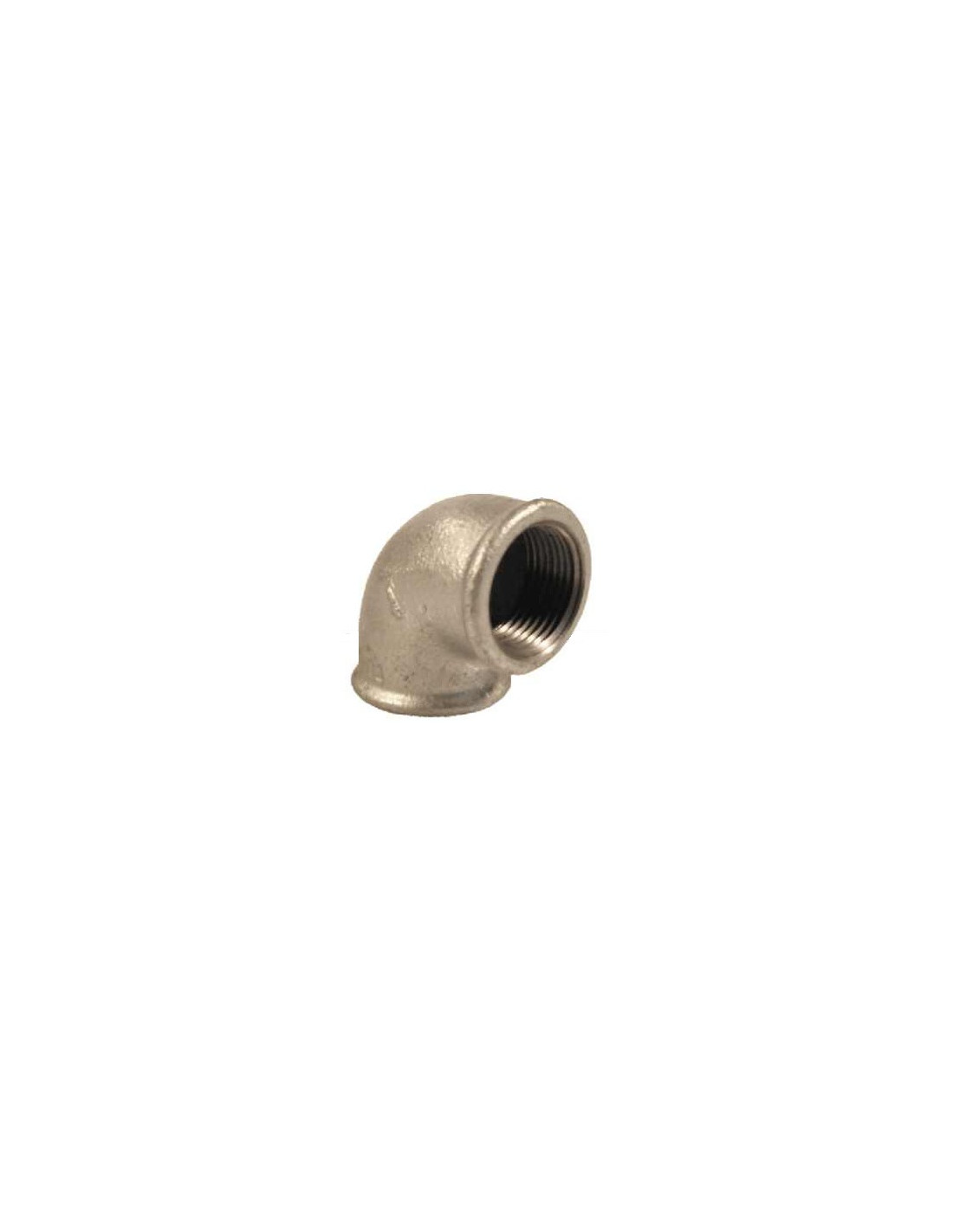

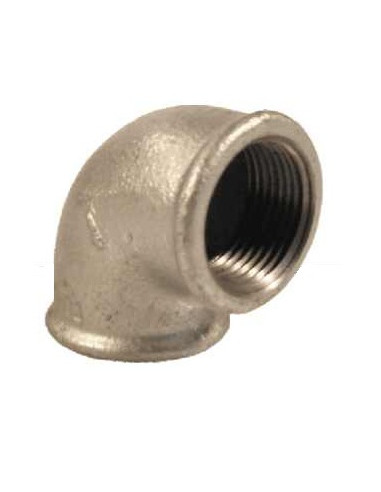

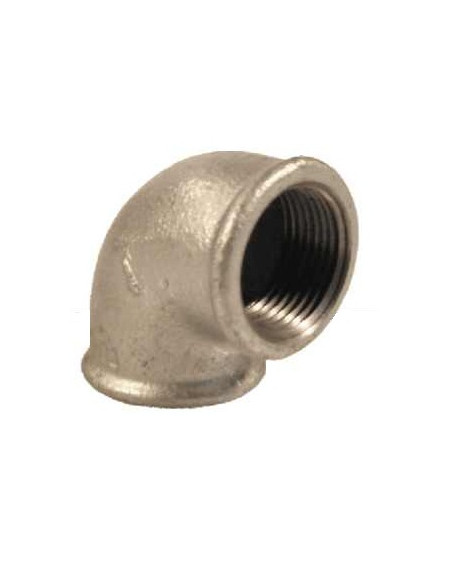

Gomito a 90° F.F. ISO A1

Codice Misura gr Inner Master
3595/01 1/2" 97 10 200
3595/02 3/4" 160 60 120
3595/03 1" 240 30 60
3595/04 1.1/4" 386 20 40
3595/05 1.1/2" 465 15 30
3595/06 2" 649 1 9
3595/07 1/4" 36 10 100
3595/08 3/8" 69 80 320
3595/09 2.1/2" 1325 1 12
3595/10 3" 1800 1 8
3595/11 4" 2400 2 4
