3600

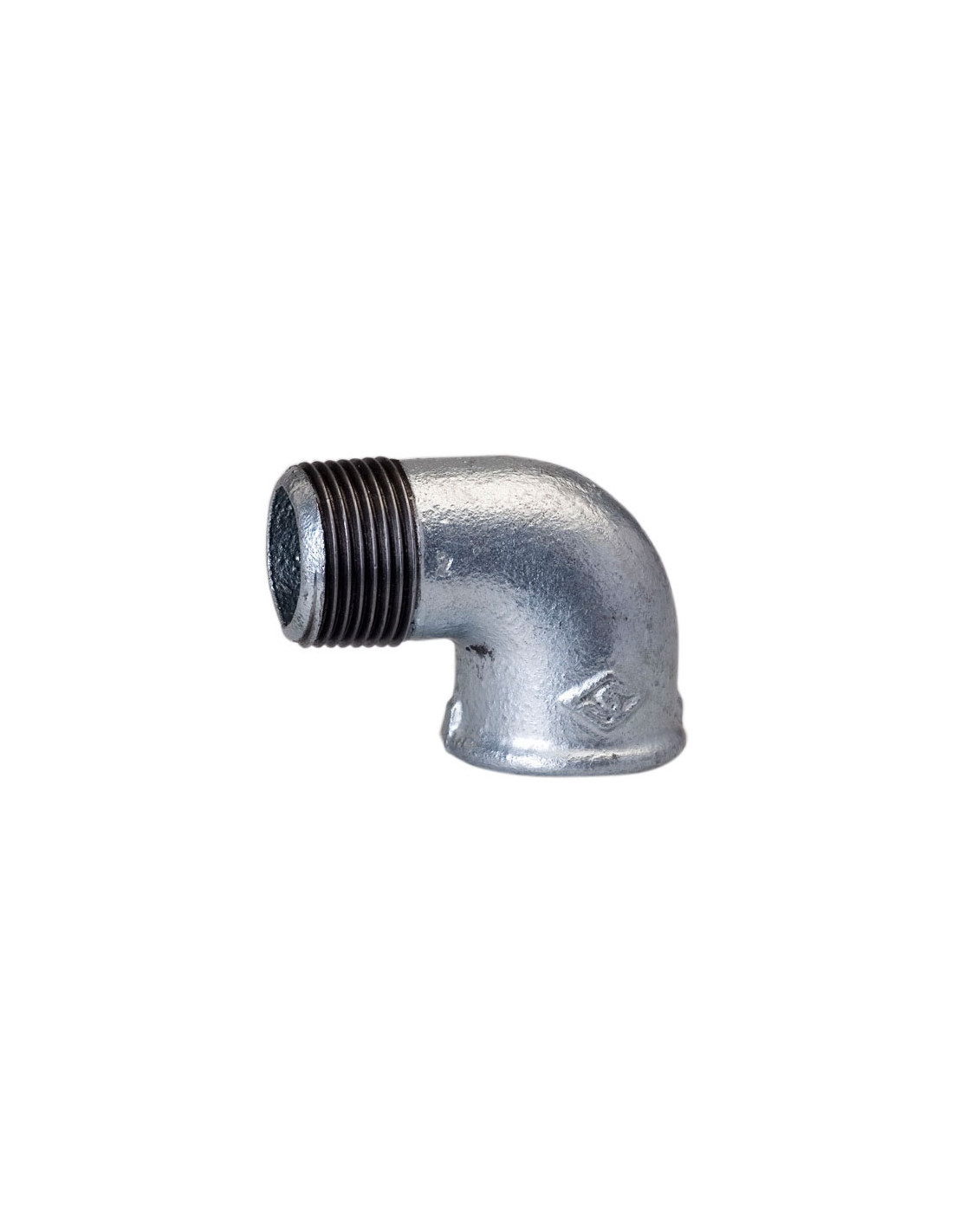

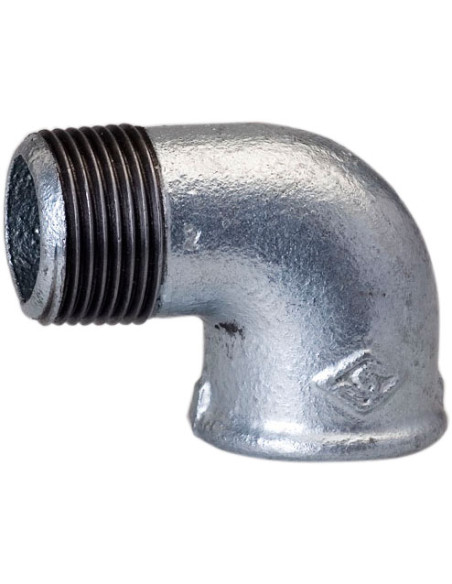

Gomito a 90° M.F. ISO A4

Codice Misura gr Inner Master
3600/01 1/4" 40 100 400
3600/02 3/8" 63 10 260
3600/03 1/2" 100 90 180
3600/04 3/4" 120 10 50
3600/05 1" 193 5 30
3600/06 1.1/4" 308 20 40
3600/07 1.1/2" 395 5 40
3600/08 2" 658 8 8
3600/09 2.1/2" 1269 1 10
3600/10 3" 1388 3 3
