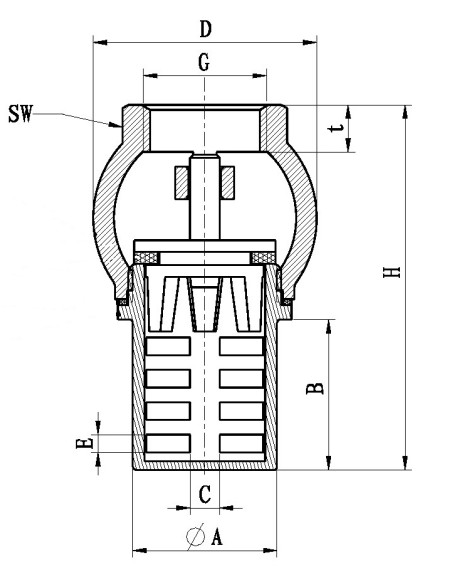

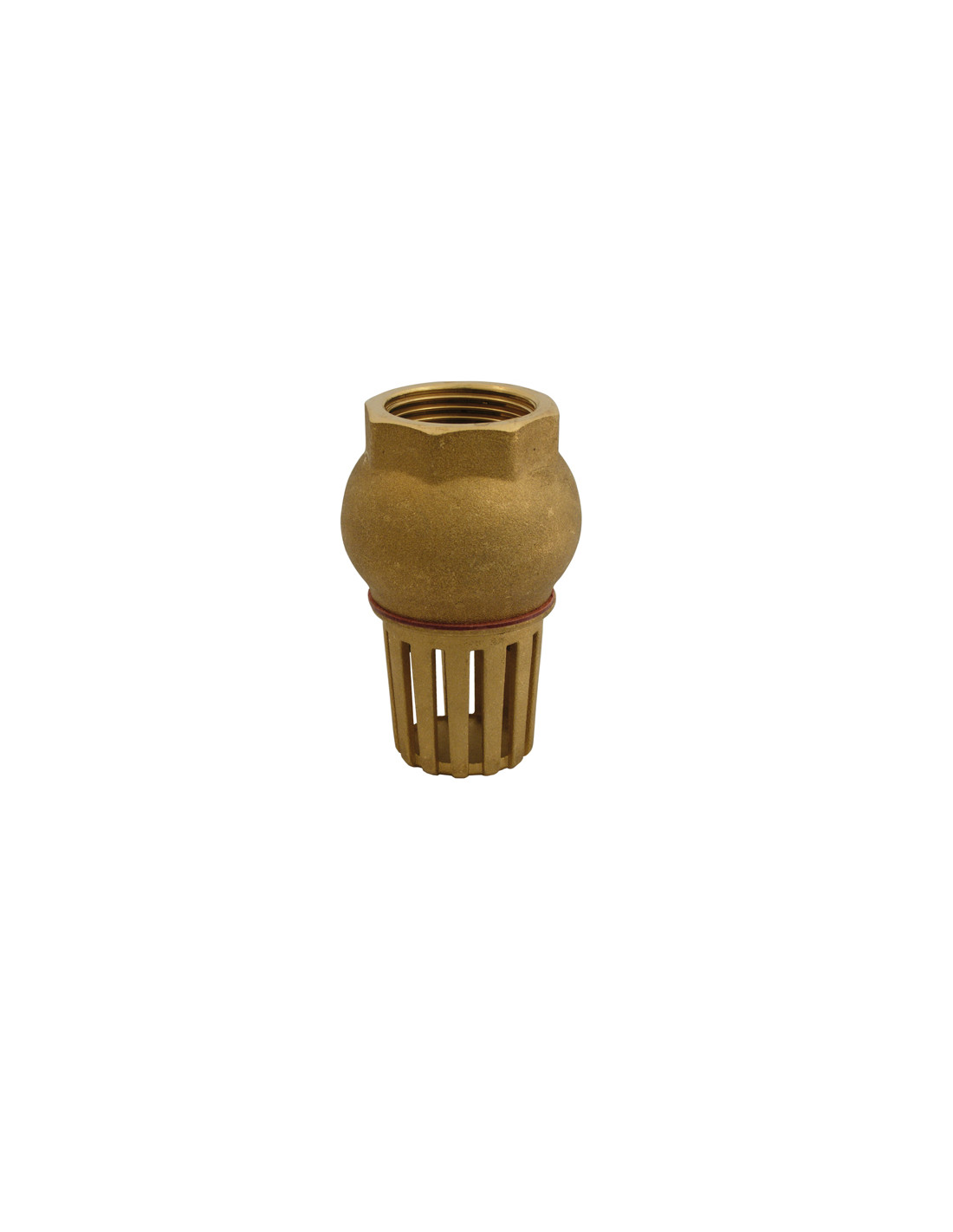

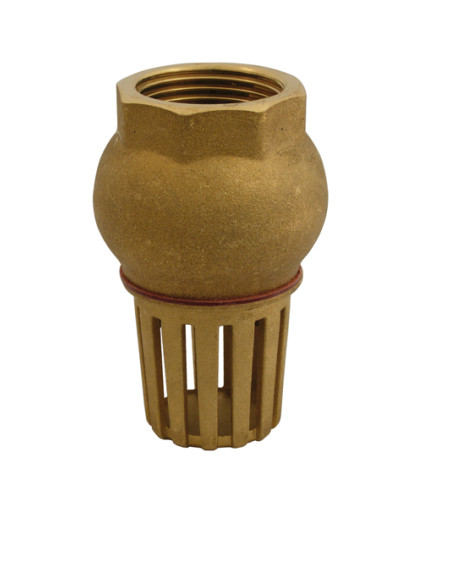

Art.295 Valvola di fondo PN25 F.
295
| Codice | Misura | W | D | E | F | gr | Inner | Master | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 295/02 | 3/4" | 31 | 68 | 44 | 10 | 230 | 18 | 18 | ||
| 295/03 | 1" | 37.5 | 79 | 48 | 11.5 | 241 | 10 | 80 | ||
| 295/04 | 1.1/4" | 46.5 | 92.5 | 60 | 12 | 393 | 6 | 24 | ||
| 295/05 | 1.1/2" | 53.5 | 101.5 | 66 | 13 | 516 | 3 | 36 | ||
| 295/06 | 2" | 66 | 116 | 77 | 13.5 | 829 | 3 | 18 | ||
| 295/07 | 2.1/2" | 82 | 140 | 86 | 14 | 980 | 1 | 10 | ||
| 295/08 | 3" | 94.5 | 148.5 | 112 | 18.5 | 1623 | 1 | 12 | ||
| 295/09 | 4" | 122 | 186 | 144 | 16.5 | 2744 | 1 | 4 | ||
| 295/10 | 5" | 6400 | 1 | 2 | ||||||
| 295/11 | 6" | 10100 | 1 | 1 |
