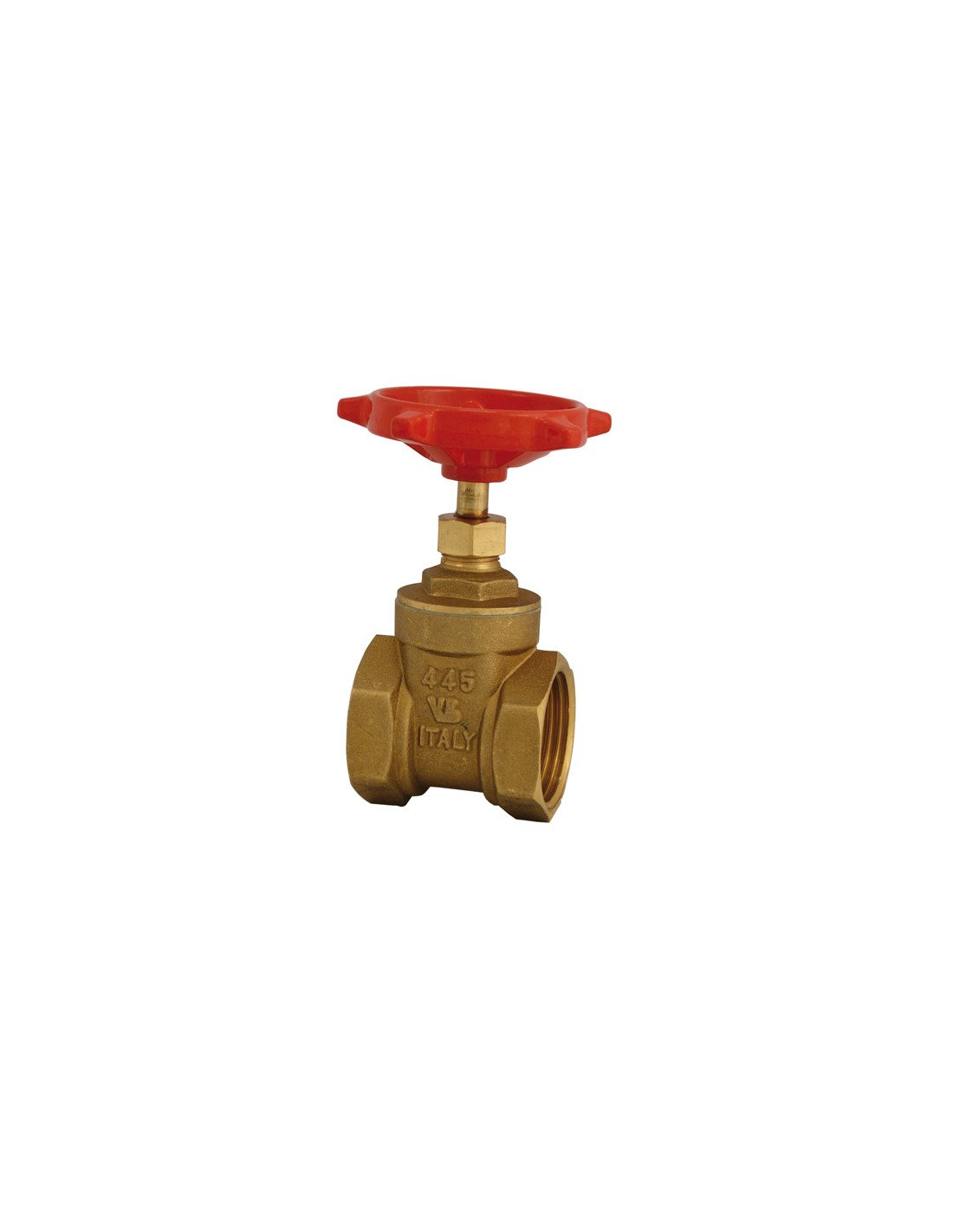

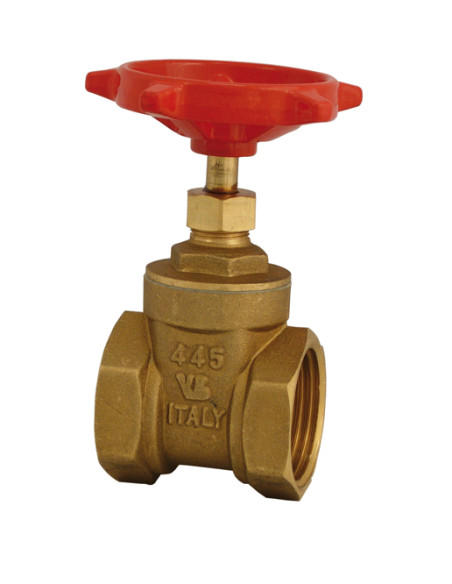

Art.445 Valvola a saracinesca PN12
445

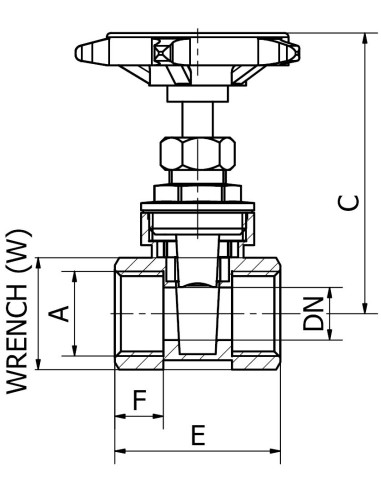

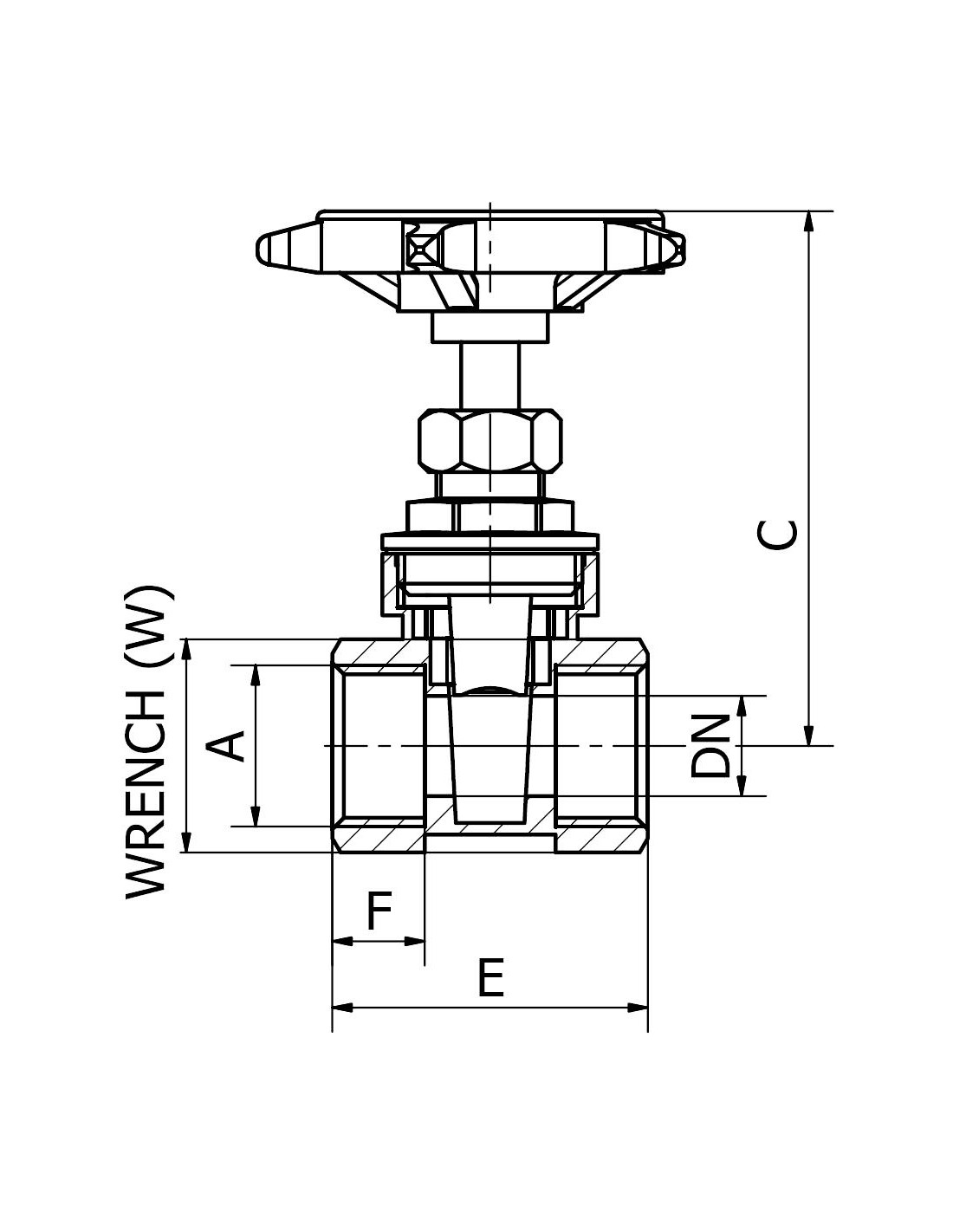

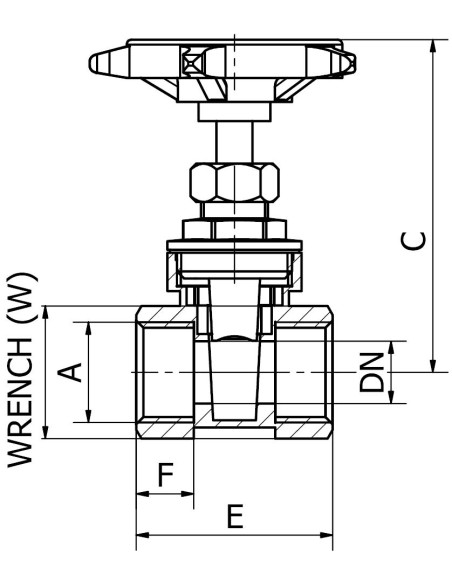

| Codice | Misura | DN | F | W | E | C | gr | Inner | Master | |
|---|---|---|---|---|---|---|---|---|---|---|
| 445/01 | 1/4" | 11 | 13 | 24 | 35 | 66 | 162 | 25 | 25 | |
| 445/02 | 3/8" | 13 | 12 | 24 | 36 | 67 | 164 | 25 | 25 | |
| 445/03 | 1/2" | 15 | 10.5 | 25 | 37 | 73 | 152 | 20 | 120 | |
| 445/04 | 3/4" | 15 | 12.5 | 29 | 44 | 70 | 191 | 10 | 100 | |
| 445/05 | 1" | 20 | 13 | 36 | 45 | 81 | 274 | 8 | 48 | |
| 445/06 | 1.1/4" | 30 | 15 | 44 | 52 | 90 | 476 | 4 | 48 | |
| 445/07 | 1.1/2" | 33 | 15 | 52 | 54 | 105 | 598 | 3 | 36 | |
| 445/08 | 2" | 42 | 16 | 65 | 60 | 136 | 944 | 2 | 24 |
