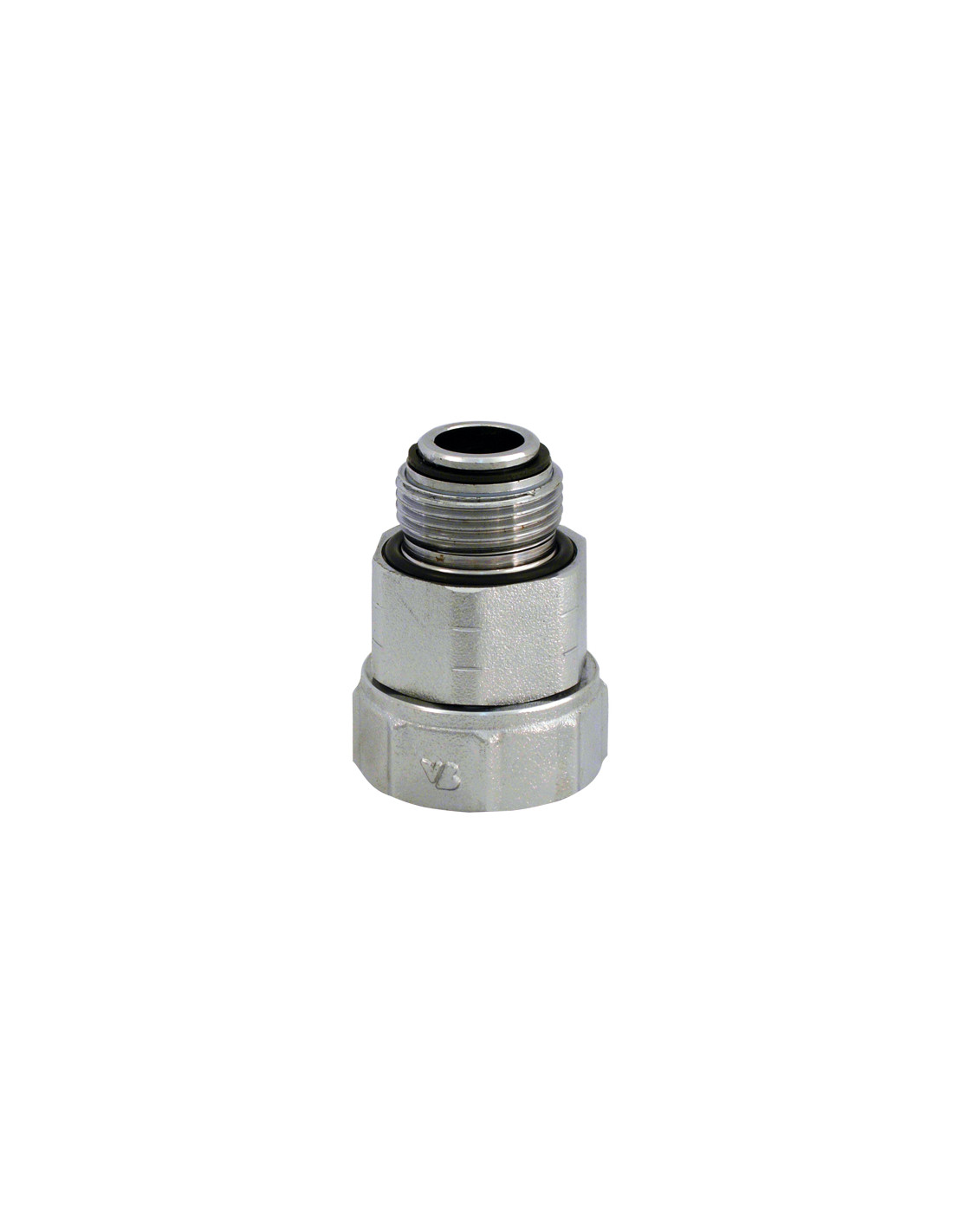

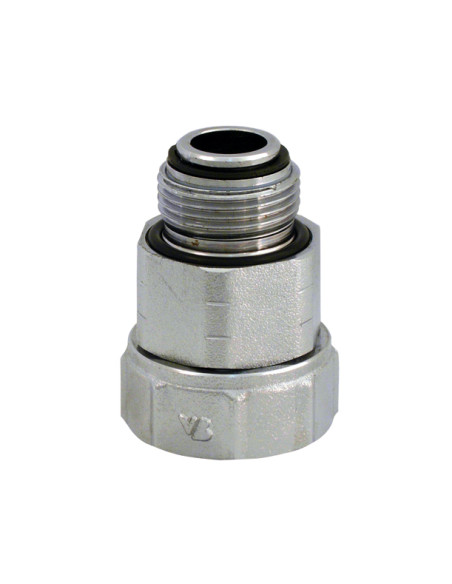

Art.801 Raccordo girevole cromato M.F.
801

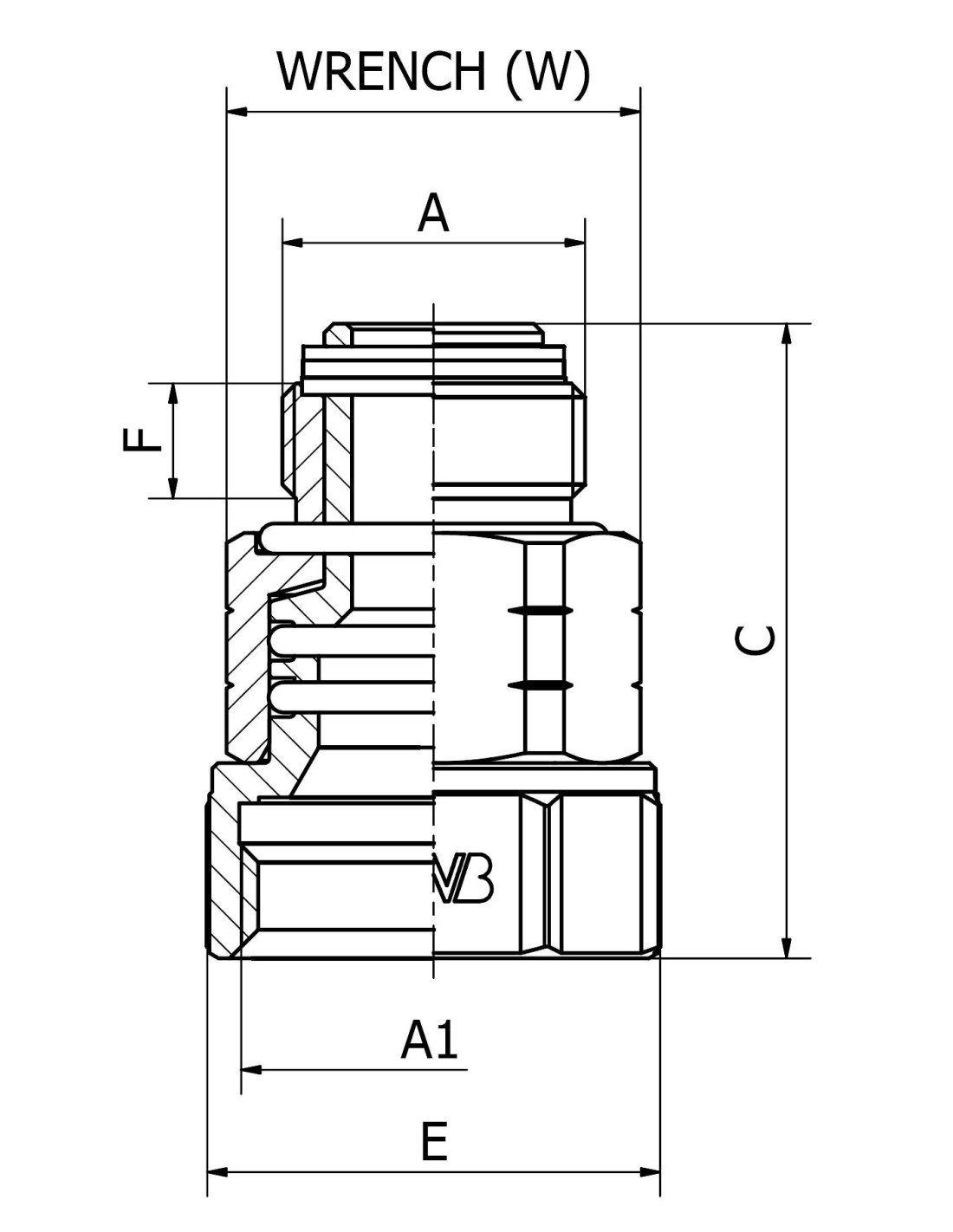

| Codice | Misura | A | A1 | F | W | E | C | gr | Inner | Master |
|---|---|---|---|---|---|---|---|---|---|---|
| 801/01 | 3/4"x1" | 3/4" | 1" | 15 | 33 | 41 | 56 | 190 | 10 | 100 |
| 801/02 | 1"x1" | 1" | 1" | 15 | 33 | 42 | 53 | 257 | 10 | 100 |
| 801/03 | 3/4"x3/4" | 3/4" | 3/4" | 14 | 34 | 37 | 52 | 184 | 12 | 120 |
| 801/04 | 1/2"x1/2" | 1/2" | 1/2" | 14 | 25 | 28 | 50 | 111 | 25 | 250 |
| 801/V/04 | 1"x1" | 257 | 1 | 1 |
