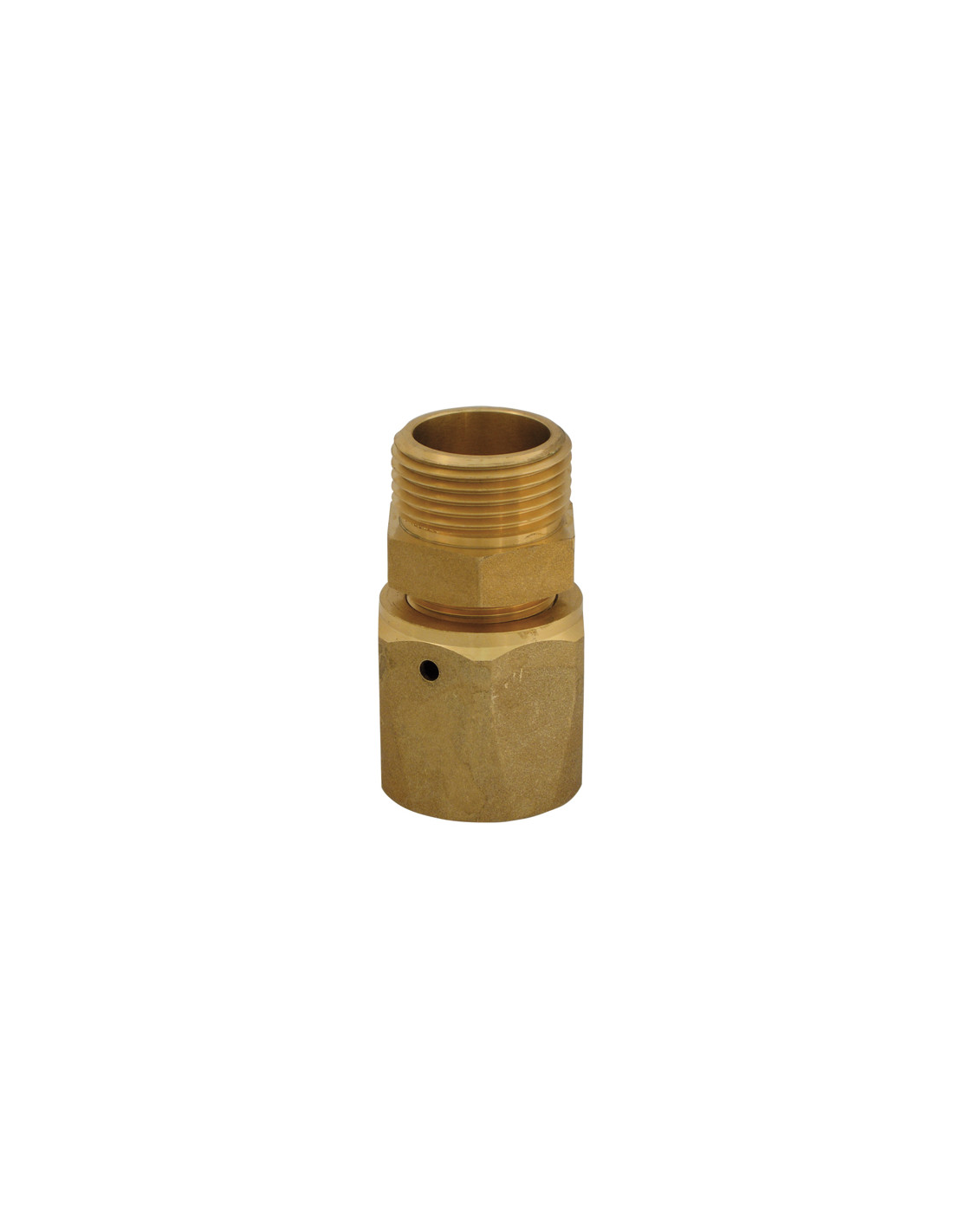

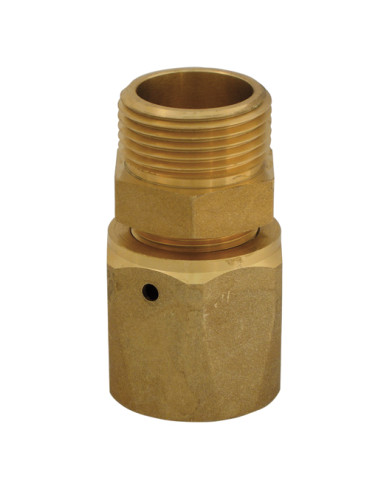

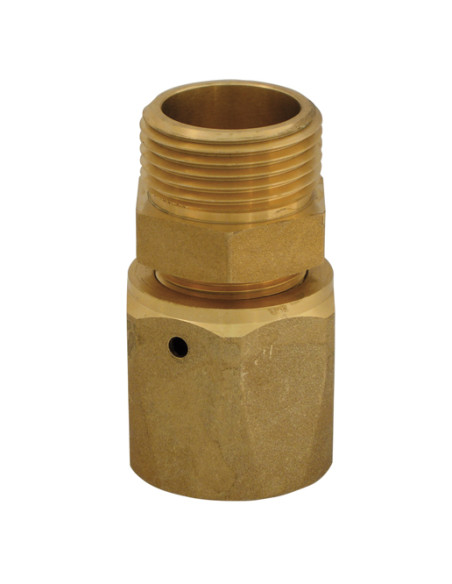

Art.810 Raccordo stringitubo maschio
810

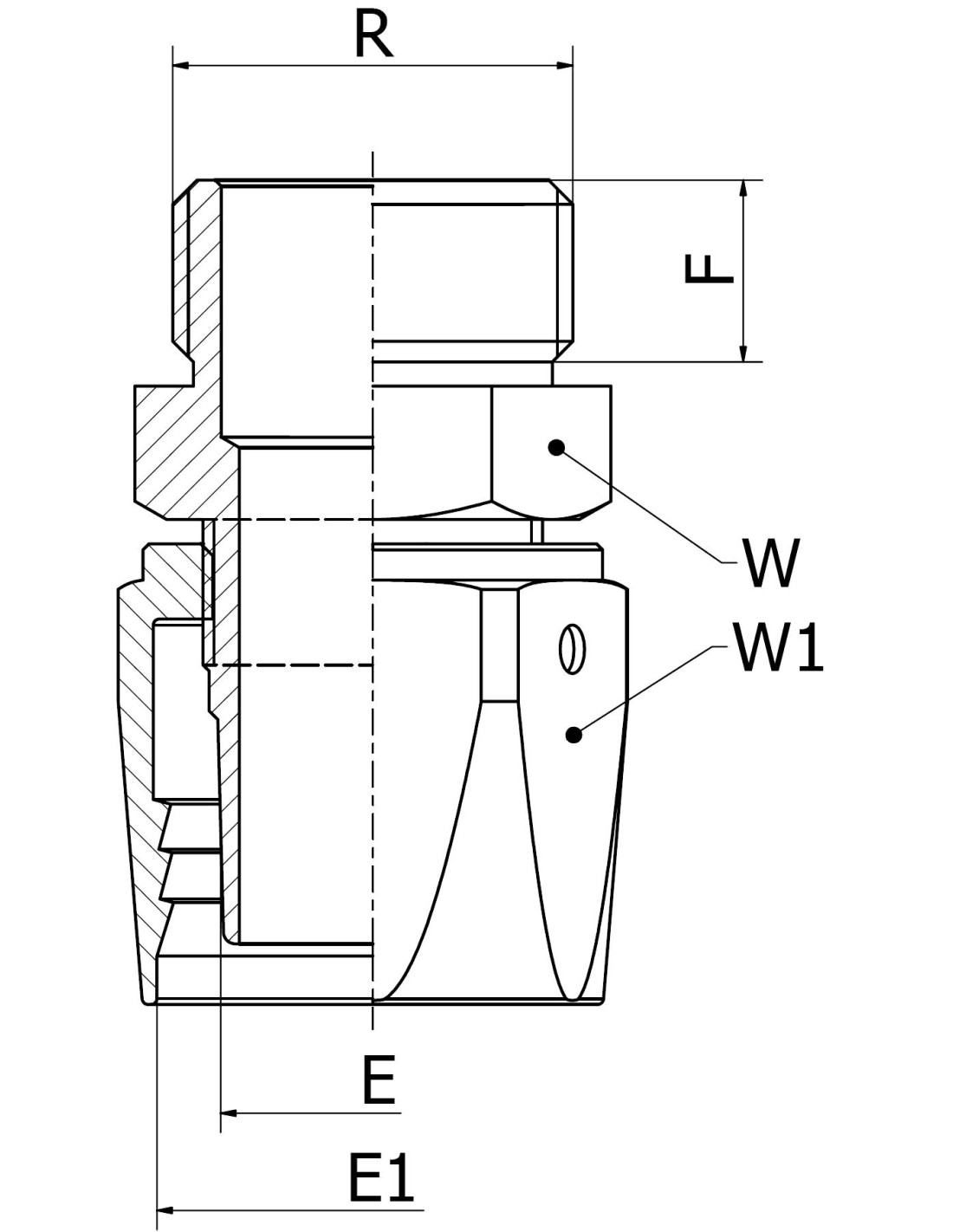

| Codice | Misura | R | F | E | E1 | W | W1 | gr | Inner | Master |
|---|---|---|---|---|---|---|---|---|---|---|
| 810/01 | 3/4"x19x27 | 3/4" | 17 | 19 | 28 | 32 | 32 | 196 | 10 | 10 |
| 810/02 | 1"x19x27 | 1" | 17 | 19 | 28 | 34 | 32 | 212 | 10 | 10 |
| 810/03 | 1"x25x35 | 1" | 17 | 25 | 36 | 34 | 38 | 228 | 10 | 10 |
