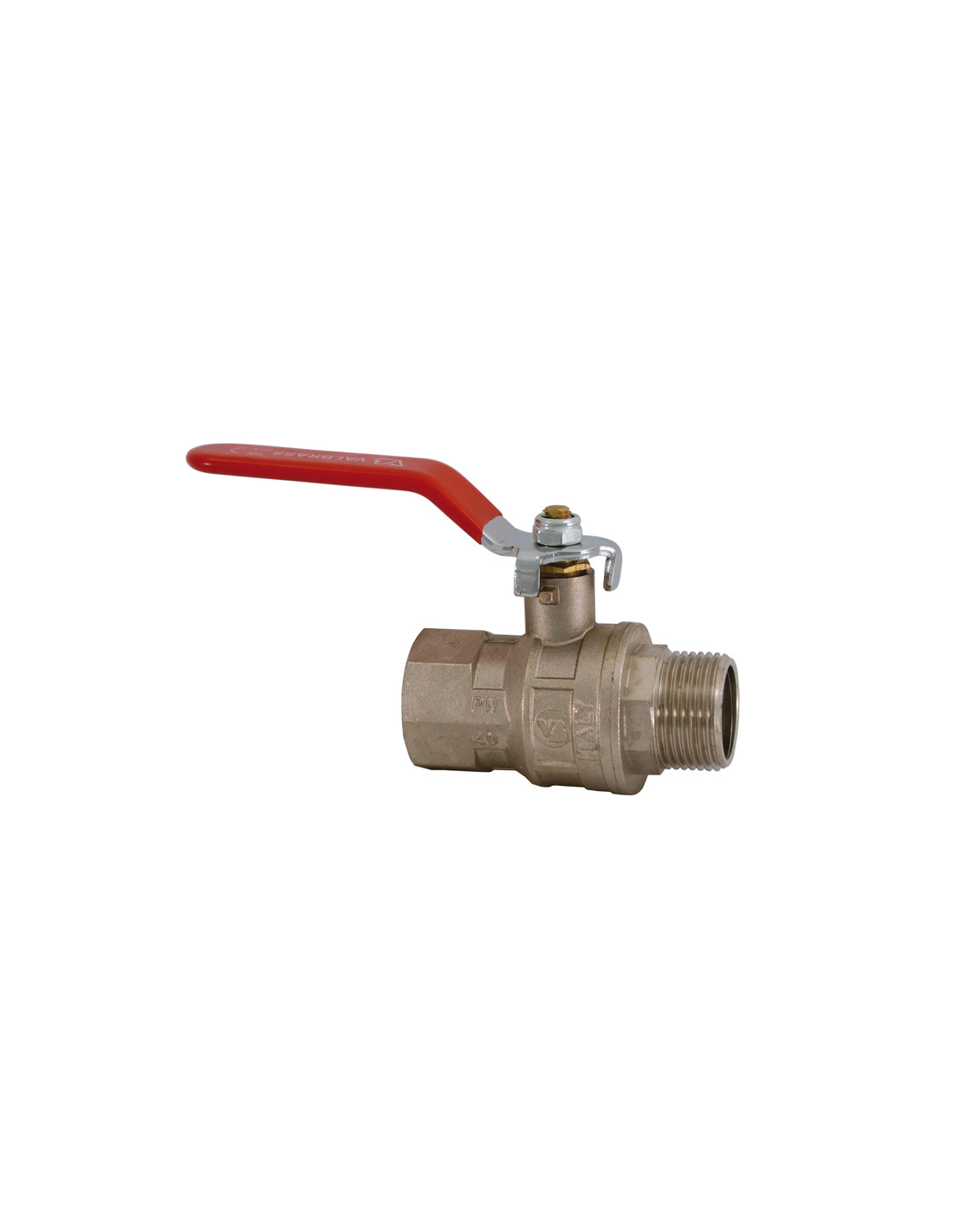

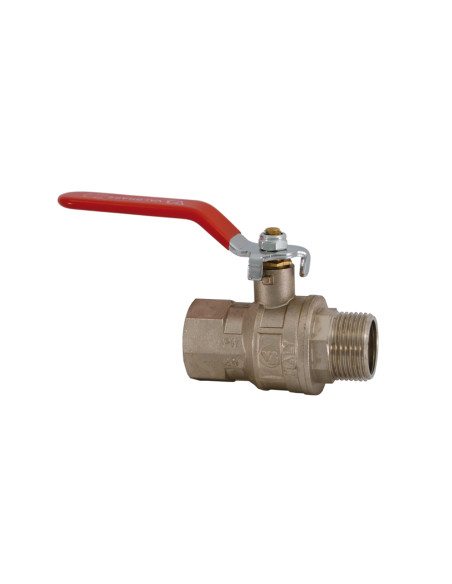

Art.305 Valvola a sfera M.F.
Art.305 Valvola a sfera M.F.
Art.305 Valvola a sfera M.F.

Art.305 Valvola a sfera M.F.

Art.305 Valvola a sfera M.F.

Art.305 Valvola a sfera M.F.

Art.305 Valvola a sfera M.F.

300

Codice Misura DN W C D E F gr Inner Master
300/01 1/4" 10 21 53 45 85 12 199 12 144
300/02 3/8" 10 21 53 54 89.5 12 187 12 144
300/03 1/2" 15 26 65 56 109 17 273 12 96
300/04 3/4" 20 32 73 63 109 18 403 12 72
300/05 1" 25 39 84 66 116 21 538 6 48
300/06 1.1/4" 32 48 98 84 139 24 908 4 32
300/07 1.1/2" 40 55 106 90 170 23.5 1282 2 20
300/08 2" 50 67 126 95 175 26 1861 2 16
300/09 2.1/2" 64 83 131 125 245 23 2825 1 1
300/10 3" 73 96 150 133 245 23 3905 1 1
300/11 4" 90 125 170 143 245 23 6540 1 1
